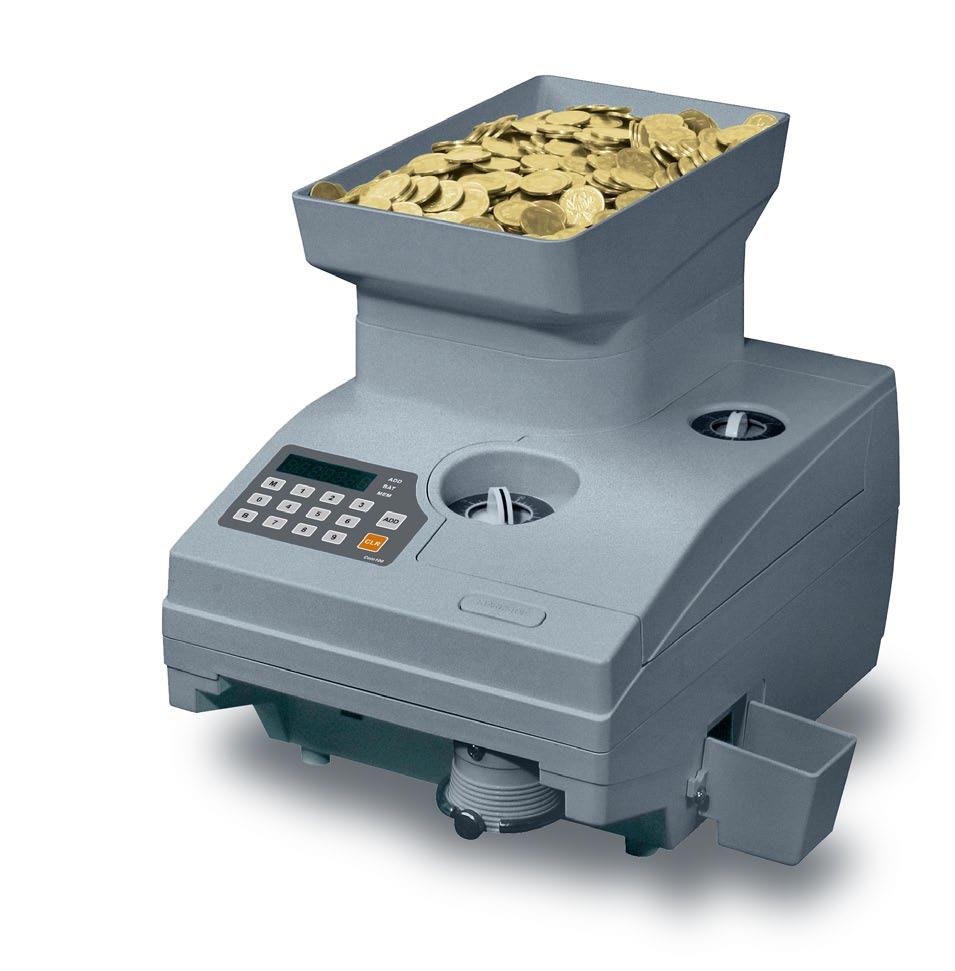

Coin Counters - Compact and simple

Coin counter processes and counts pre-sorted coins – without valuation. Due to its two-button operation, operation is very simple.

A simple handle is used to switch between up to 10 different coin types. All coins with a diameter less than 0.5 mm are automatically removed from the coin counter. Variable quantity stops are also adjustable for comfortable use.

• coin counter for single denomination coins
• intake capacity: up to 12.000 coins
• counting speed: 2.500 coins/minute
• up to 10 cointypes
• storage of counting perations
• large hopper extension included









COINS SELF-SERVICE DEPOSIT

“Carry & Count” is a system for coin self-deposit to be installed in the protected areas of the banks, armoured companies, supermarkets or similar. The coins (even mixed) are easily fed into a proper hopper: after having pressed “start” key, the machine counts all the coins and displays their total (alphanumeric display). All information (such as main and partial totals) and all details about different operations are available by selecting the proper function. The machine supplies automatically deposit tickets (auto-cutter) and registers further on transaction details in a journal-entry book (double ticket: stub for the bank – counterfoil for the customer).

“CCD Selex” coin detection system combined with alloy detector assure an high accuracy in coin counting and counterfeit detection. “Carry & Count”, thanks to its steel thermo-welded structure (noise-proof polymer covering) assures an excellent noiseless use and a just valid anti-crime safety measure. “Carry & Count” is equipped by a double rejection box and a practical deposit collector (with wheels and handles).



Technical Data:

Counting speed:
2,500 coins/min. (max.)

Hopper capacity:
Approx. 4,000 coins


Acceptable coins:
Diameter: 14-34 mm
Thickness: 0.7-3.9 mm
10 denominations

Power supply:
220/240 VAC ±10%, 50Hz

Dimensions:
270(W)x 362(D)x240(H) mm

Weight: 11 Kg

















Technical Data:

Diameter: 14 mm – 34mm

Thickness < 4 mm Coin

Form of counting:               Mix / sacking / tubing

General Data:             Display -Type LCD

Batching:                     variable 0 – 999 / preset

Hopper capacity: 8000 coins

Counting speed               max. 1000 coins / min

Dimensions:                      (Wx LxH)990x610x450 mm

Weight: 70 kg

Power consumption: 70 W

Power supply: 110-220V

Interfaces:   RS232 PC-connection serial port, Printer, serial port USB-port updates by USB-stick
